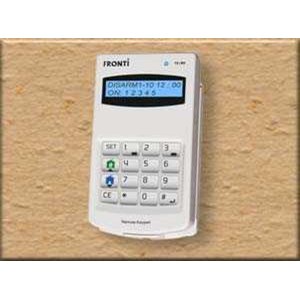

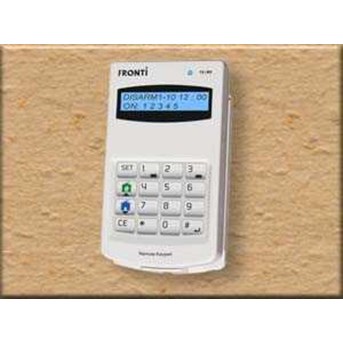

FS310W Wireless Remote Touch-pad & LCD

Application: FS310W has two-way communication, so that it can operate working mode and LCD can display all working events and alarm event. Two partitions are separated to Arm/ Disarm control, for main house and office or garage house, both area are protected. It also a PSTN/ GSM system, can combine with external phone set for call-in/ out talking. It can be combined with Fronti other accessories like PIR, Door/ Window sensor, AC power detector, temperature sensor, wireless siren, AC power switch and ? .etc. They are completely wireless communication controlling system. Features: 1. Touch pad can operate alarm working mode and setup alarm program 2. Built-in 16 x 2 digits LCD display working mode, alarm event and setting manual data. 3. The LCD is blue color backlight 10 seconds, which can delay auto OFF. 4. The FS310W can combine with FS240/ FS290/ FS310 by wireless control and display two-way communication. 5. It can setup programs, operate working mode and display working event of the FS310 Console. 6. The FS310W can operate working mode and display working event of the FS240/ FS290 Console. 7. The LCD can display indoor/ outdoor temperature sensors and report temperature lever. 8. The LCD can display the 5 channel AC power switch number by user to turn on and automatically turn on/ off. 9. It can save to review 250 alarm events log on LCD, all program manual and setup alarm function data. 10. With 2channels temperature sensors which can display INT/ EXT -40 to + 60 lever data. 11. When incorrect passwords entry ( hacking) , the digital keypad will lock out for protection. 12. One LED to indicates the radio TX/ RX data of working condition. 13. With a mast password and 9 user passwords to setup the console two partition working mode. 14. With mounting bracket holder, it can be fixed on wall. 15. With a buzzer to emit beep sound for key tone and alarm condition. 16. Built-in tamper switch and power failure detector functions. Specification: Power Source DC 12V 500mA AC Adaptor Stand-by current 30mA ( Max) Broadcast range 150M in a free space Working Current 60mA ( Max) Back-up Battery 4.8V/ 1.2Ahr rechargeable Battery Back-up time 72 HRS ( Min) Dimensions 125m/ m x H50 m/ m, Weight: 140g Working temperature range -10 deg C to 60 deg C Working frequency 433.92.MHz or 869.25MHz
