FS222A GSM Security Console

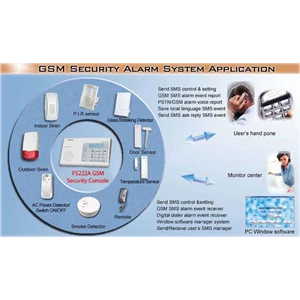

Application: The FS222AGSM GSM Security Console with transceiver module offers Tri-Band 900/ 1800/ 1900 GSM/ GPRS system, it adopts SIMCOM 300 module. It is approved by R& TTE and GCF. It transceiver module board can receive all Fronti wireless accessories trigger signal, like keypad / sensors. It can also control external siren or FS172/ FS173 AC power switch turn ON/ OFF. Setting up all programs is via PSTN DTMF or GSM SMS or PC window software. It is a low cost GSM security console simple/ easy alarm operation and has full call in/ out SMS function. Features: 1. The GSM auto dialer offers Tri-Band 900/ 1800/ 1900 GSM/ GPRS system that adopts SIMCOM 300 module, and it is R& TTE and GCF approved. 2. Can combine with normal phone set, security console or IP voice route transfer to GSM call-out. 3. When the PSTN phone line disconnects, it will automatically transfer to GSM and send SMS message. 4. 5 LED indicators for Power On/ Off, GSM/ TEL, GSM on-line, TEL on-line and system fault. 5. Pre-set save 2 phone numbers for alarm calling-out and sending digital data CONTACT ID, ..ets. 6. Pre-set save 7 phone numbers for alarm GSM calling-out and sending user data/ alarm event/ sensor data SMS. 7. Built-in Input NC/ NO terminal allows connection to wire type sensors, security console or panic buttons to call-out and send SMS. 8. Built-in terminal block for alarm DC 12V and NC/ NO can relay output to connect any external siren/ strobe or light/ CCTV control. 9. Built-in rechargeable back-up battery, Tamper Switch and Power Failure Detector can automatically call-out and send SMS. 10. Can connect with the external phone set for call-in/ out GSM talking function. 11. It can support remote controller, keypad, wireless sensors and wireless external siren. 12. It can save total 80pcs wireless accessories ID code in EEPROM. 13. Alarm will call-out digital dialer to report digits alarm event and then will send SMS with alarm event, sensor number/ name and user name address data. 14. Can call-in GSM system key-in DTMF code to setup working mode or save program function. 15. Call-in and send SMS to operate alarm working mode and setup alarm program function; it can also automatically reply SMS of working mode and alarm event data. 16. Can connect to PC, via USB port, for window software read/ write all program functions. 17. It can save local language of user data, alarm event and sensors name by SMS or PC window software. 18. Can turn on/ off by wireless control 5 channels FS172/ FS173 AC power switch. Specification: Power Source 12VDC, 1.5A by AC adapter Battery Back-up time 12HRS ( Min) Back-up Battery 9.6V/ 1.5Ahr rechargeable Working Current 500mA ( Max) Stand-by Current 180mA ( Max) Working temperature range -10 deg to 60 deg Dimensions 190L x128W x 56H ( mm) , Weight: 620g Working frequency 433.92.MHz or 869.25MHz
