MPS Conference system-Fec0725, Meeting Presentation System

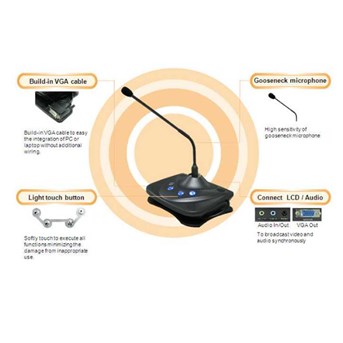

MPS Conference system-Fec0725 Features: * With MPS, participants can do video presentation and oral report freely just brining their laptops. * User-friendly design, touch button, simplifies the operation and enhances efficiency in the meeting. * Master and slave can open the microphone and start the discussion by pressing talking button on the base. * Master and slaves can broadcast laptop/ PC VGA/ Audio signal to projector and monitors simultaneously by pressing projection button. * Master can transmit signal to display device in 300m with CAT5E cable. * Support resolution of XGA, SXGA, UXGA, WXGA, WSXGA/ WXGA+ * High-quality video signal promised by using STP-CAT5E Cable transmission. MPS-Fec0725 Master MIC Input: High sensitivity of gooseneck microphone. VGA Input: Build-in VGA cable connect to NB or PC. VGA Output: Connect to monitors displaying the broadcasted video signal. Audio Input : Connect to audio input of NB, PC, etc. Audio Output: Connect to amplifier or speaker. Power: Adapter DC 12/ 1A RS-232 port: Prepared port to future firmware update RJ-45 port: Connect to MPS-108B( Slave side) with CAT5 Cable Light touch button( four-functions) AV Extender output: Connect to remote projector, amplifier, etc. MPS-Fec0725 Slave MIC Input: High sensitivity of gooseneck microphone. VGA Input: Build-in VGA cable connect to NB or PC. VGA Output: Connect to monitors displaying the broadcasted video signal. Audio Input : Connect to audio input of NB, PC, etc. Audio Output: Connect to amplifier or speaker. Power: Adapter DC 12/ 1A RS-232 port: Prepared port to future firmware update RJ-45 port: Connect to MPS-108B( Slave side) with CAT5 Cable Light touch button( two-functions) AV Extender output: Connect to remote projector, amplifier, etc.
